| Dimensions | 120 x 122 x 90 mm |
| Material | Polyester black |
| Terminal equipment | 4 x 10mm² + 3 x 10mm² PE |
| Drill hole | 4 x M20 x 1,5 + 1 x M25 x 1,5 |
| Screw connection | 1 x M25 x 1,5 |
| Protection class | IP 65 |
| Temperature resistance | -40 °C up to + 90 °C |
| Type | Item no. |

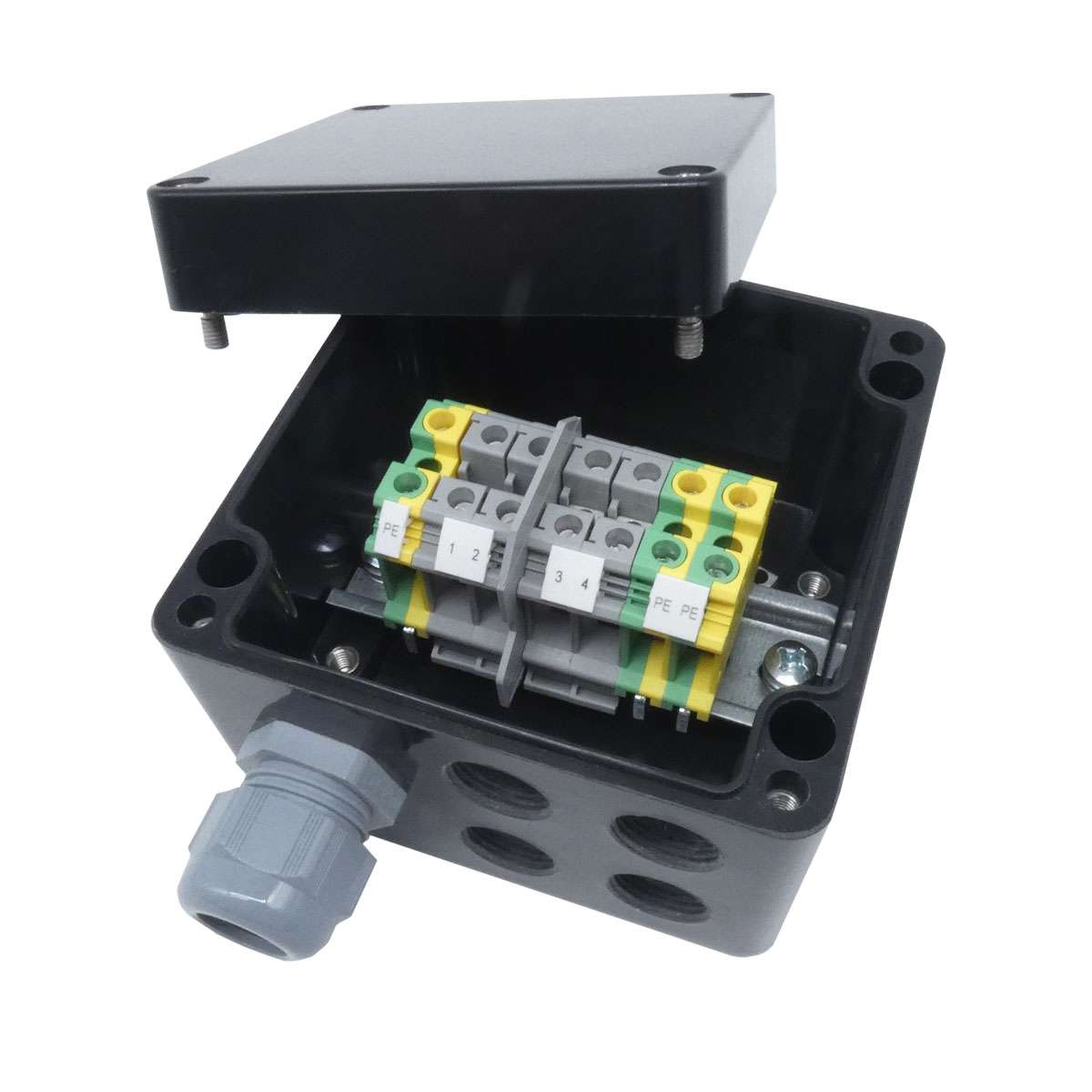

| MIL-PCB 1 | 70000001 |
